Steel Single/Double Sprocekt Roller with Polymer Bearing Housing

  1. Circle welding of steel sprocket and tube.
  2. High intensity, larger transmit torque
  3. Polymer bearing housing design, beautiful, quiet
  4. Temperature range: – 5℃ ~ + 40℃
  5. Applicable humidity: RH≥30%

Description：

  1. Welding the steel sprocket to the steel tube gives it the capacity to transmit high torque and meet the requirements for heavy duty transportation.
  2. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller.
  3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water  roller.
  4. Temperature range: -5℃ ~ +40℃.

Please contact us if humidity out of this scope.

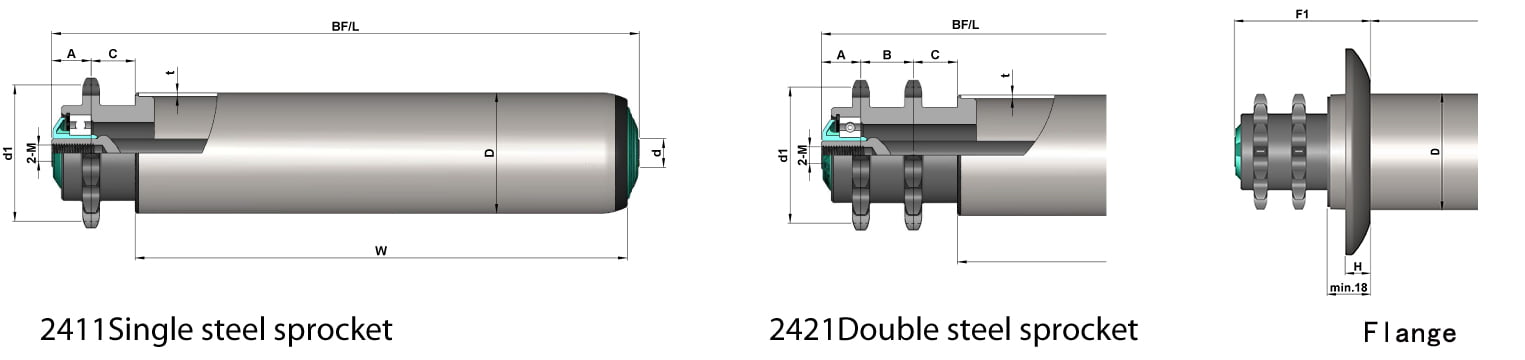

D T Shaft Sprocket A B C Steel Z/P SS
Φ50 1.5 Φ12/15 08B14T 17 22 18.5 √ √
Φ50 2.0 Φ12/15 08B14T 17 22 18.5 √
Φ60 2.0 Φ12/15 08B14T 17 22 18.5 √ √
Φ76 3.0 Φ20 10B15T 18 26 13 √ √
Φ80 3.0 Φ20 10B15T 18 26 13 √
Type D Df H Steel Z/P SS
Welding   Φ60 Φ120 12 √  √
Welding   Φ70 Φ135 16.5 √  √
Welding   Φ80 Φ150 18 √
