Polymer O-belt Conveyor Roller

  1. The end driven, more stabilized conveying
  2. Based on 1200 series design, beautiful, quiet operation
  3. Application for light&middle duty
  4. Temperature range: – 5℃ ~ + 40℃
  5. Applicable humidity: RH≥30%

Description:

  1. The O-belt pulley is located the end of the roller which separates the drive area and the conveying area avoiding interference between the O-belt and the conveyed goods.
  2. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller.
  3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
  4. Because there is no grooving of the tube, the tube will not have any distortion and the roller will run more smoothly.
  5. Standard configuration with anti-static design surface impedance≤106Ω。
  6. Temperature range: -5℃ ~ +40℃.
  7. Humidity range: 30-90% RH (non-condensation).

Please contact us if humidity out of this scope.

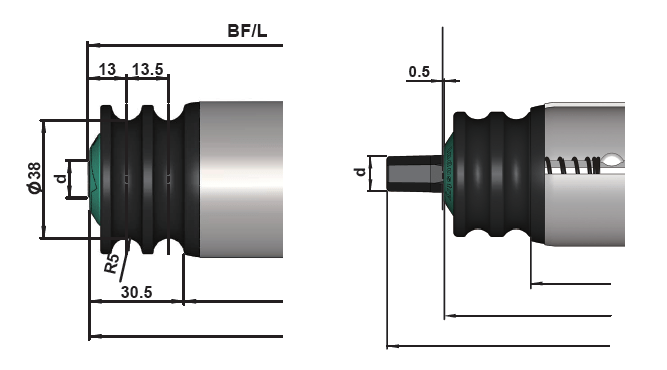

Spring loaded

Internal Thread

Polymer noiselesssleeve for shaft

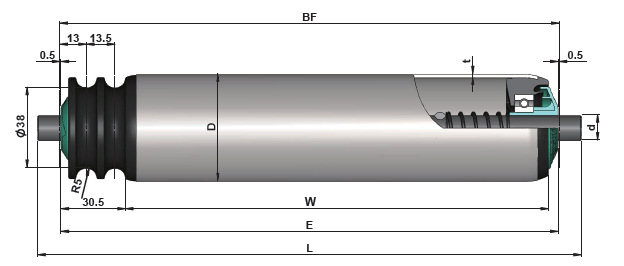

D T Shaft Steel Z/P SS Aluminium
Φ50 1.5 11hex,Φ10/12/14/15 √ √ √

Remark:
Φ50 rollers can be fitted with PVC sleeve (2mm) and PU sleeve (2mm).
11hex can provide tapered plastic steel shaft sleeve roller.

Polymer noiseless sleeve for shaft roller：
① Actual frame width= E+（1~3）mm，Excessive width inside the frame will damage the shaft core and roller.
② Applicable mounting hole range：11.2~11.7mm（edge to edge）.
