Single/Double Polymer Sprocket Roller

  1. Polymer sprocket design, lighter and quieter
  2. Self-lubricating with steel chain, completely free of maintenance
  3. Suitable for light,middle duty convey
  4. Temperature range: – 5℃ ~ + 40℃
  5. Applicable humidity: RH≥30%

Description：

  1. Using the polyamide sprocket roller as the drive element greatly reduces the running noise.
  2. The bearing end cap consists of a precision ball bearing,  a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller.
  3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
  4. The weight of the goods to be conveyed should not exceed 150kg.
  5. Standard configuration with anti-static design surface impedance≤106Ω。
  6. Temperature range: -5℃ ~ +40℃.
  7. Humidity range: 30-90% RH (non-condensation).

Please contact us if humidity out of this scope.

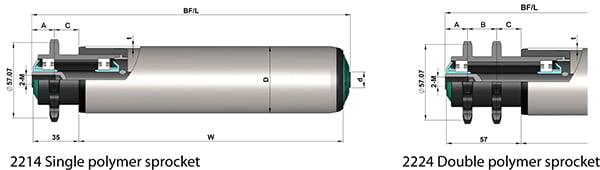

D T Shaft Sprocket A B C Steel Z/P SS Aluminium PVC
Φ50 1.5 Φ12/15 08B14T 17 22 18.5 √ √ √
Φ50 2.5 Φ12/15 08B14T 17 22 18.5       √
Φ60 2.0 Φ12/15 08B14T 17 22 18.5 √ √ √

Marks：Φ50、60mm rollers can be fitted with PVC sleeve (2mm).
             Φ50、60mm rollers can be fitted with PVC sleeve   (2mm).
             11hex can provide tapered plastic steel shaft sleeve roller.
