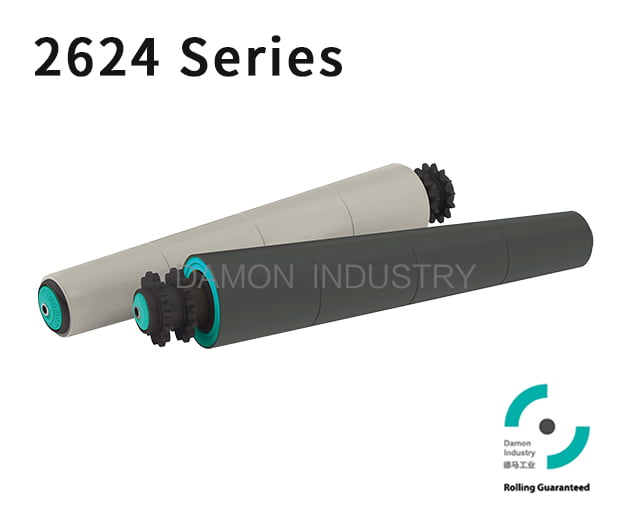

Polymer Double Sprocket Tapered Sleeve Roller

  1. Polymer sprocket, self-lubricating and maintenance-free
  2. Light weight, easy start-up
  3. Suitable for low-load convey
  4. Temperature range: – 5℃ ~ + 40℃
  5. Applicable humidity: RH≥30%

Description:

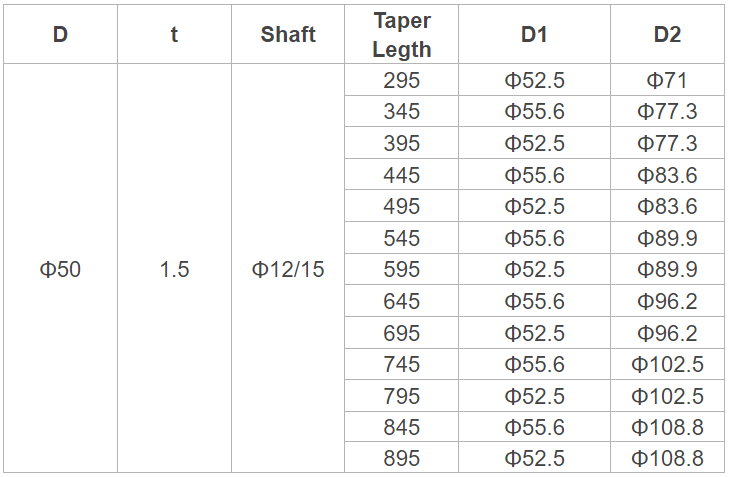

  1. Based on the 2224 Series, covered with grey polypropylene taper sleeve; abrasion resistant, low noise, shockproof.
  2. In the case of sensitive to static electricity, you can choose anti-static tapered  sleeve (black), surface resistance value≤106Ω.
  3. Using the polyamide sprocket roller as the drive element reduces the running noise.
  4. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller.
  5. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
  6. To avoid abrasion between the sprocket and chain, the angle between tapered rollers should not exceed 5°.
  7. The weight of single items to be conveyed should not exceed 50kg.
  8. Temperature range: -5℃ ~ 40℃.
  9. Humidity range: 30-90% RH (non-condensation).

Please contact us if humidity out of this scope.

Remark :

  1. Steel Z/P and SS tubes are available.
  2. Anti-static taper sleeve (black) available.

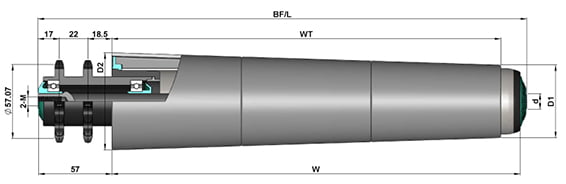

The taper sleeve length dimension (WT) is not accurate
