Steel Single/Double Sprocket Adjustable Accumulating Roller
- Special friction slice, well abrasion resistant, long life time
- Adjustable friction, more accurate and steady convey , wide application
Description:
- The accumulation force can be adjusted with high flexibility by the nut at the end of the roller.
- The precision ball bearing is pressed tightly into the steel bearing housing for maximum durability.
- The friction housing is made of special material which greatly improves its abrasion resistance and lifespan.
- Temperature range: -5℃ ~ +40℃.
- Humidity range: 30-90% RH (non-condensation).
Please contact us if humidity out of this scope.

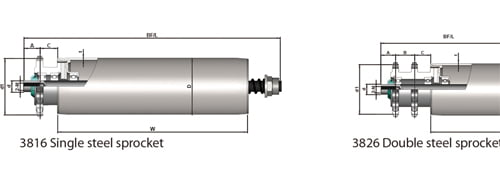

| D | T | Shaft | Sprocket | A | B | C | Steel Z/P | SS |
|---|---|---|---|---|---|---|---|---|
| Φ50 | 1.5 | Φ12 | 08B11T | 17 | 22 | 18.5 | √ | √ |
| Φ60 | 2.0 | Φ15 | 08B14T | 17 | 22 | 18.5 | √ | √ |
| Φ76 | 3.0 | Φ20 | 10A13T | 20 | 25 | 18.5 | √ | √ |
