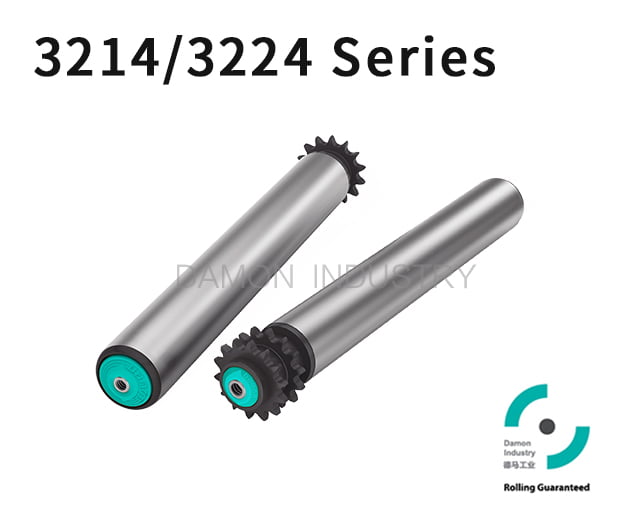

Polymer Single/Double Sprocket Accumulating Roller

  1. Polymer sprocket and accumulating sleeve, abrasion resistant and self-lubricating
  2. Low noise, could switch easily with 2214/2224 series
  3. Temperature range: – 5℃ ~ + 40℃
  4. Applicable humidity: RH≥30%

Description :

  1. With typical friction driven accumulation, the accumulation force is associated to load capacity.
  2. The bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive, smooth and quite running roller.
  3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
  4. Compared with steel sprockets, selecting the polyamide sprocket roller as the drive element greatly reduces the running noise.
  5. Standard configuration with anti-static design surface impedance≤106Ω。
  6. Temperature range: -5℃~ +40℃.
  7. Humidity range: 30-90% RH (non-condensation).

Please contact us if humidity out of this scope.

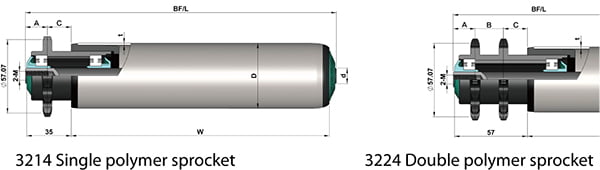

D T Shaft Sprocket A B C Steel Z/P SS PVC
Φ50 1.5 Φ12/15 08B14T 17 22 18.5 √ √
Φ50 2.5 Φ12/15 08B14T 17 22 18.5     √
Φ60 2.0 Φ12/15 08B14T 17 22 18.5 √ √
