Heavy duty application (Main for Pallet Handing)
Light and middle duty application φ60 ( Main for Carton&Plastic Box Handing )

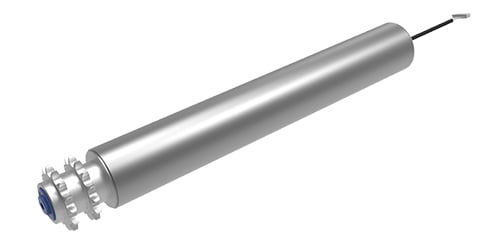

Cam MDR (PULSEROLLER) Series
Light and middle duty application φ50 ( Main for Carton&Plastic Box Handing )
Light and middle duty application φ60 ( Main for Carton&Plastic Box Handing )
- Greater static load
- maximum lenghth of roller up to 1300mm
- 24V brushless DC, green energy saving
- Intelligentialize, support multiple BUS modes
Description:
diameter of：60mm

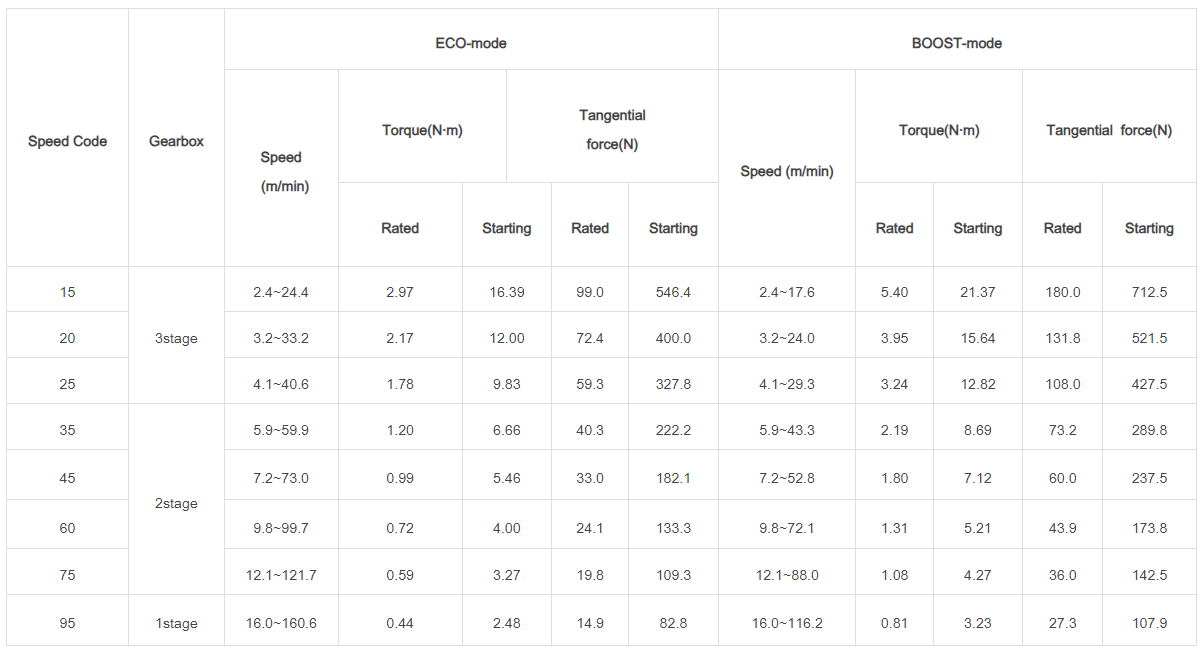

ECO mode, rated current 2.5A, starting current 3.0A.
Under BOOST mode, the rated current is 3.5A, and the starting current is 5.0A.
Please ensure that the cable end axis of MDR is conductive to the rack which is effectively grounded to ensure that static electricity can be effectually discharged.

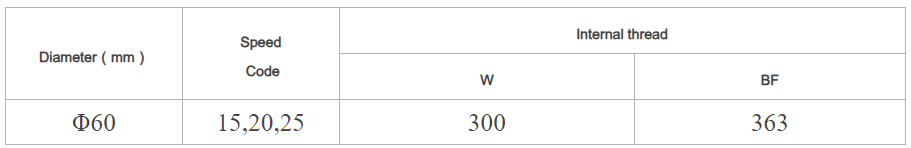

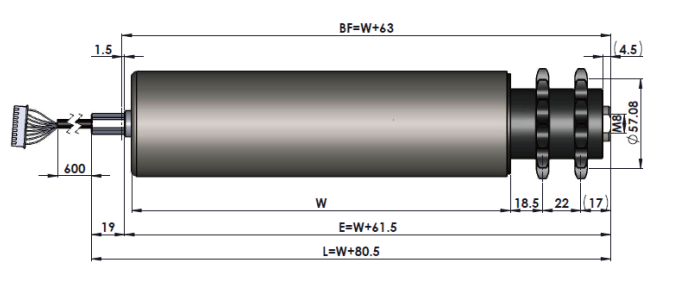

Minimum length W (unit: mm)

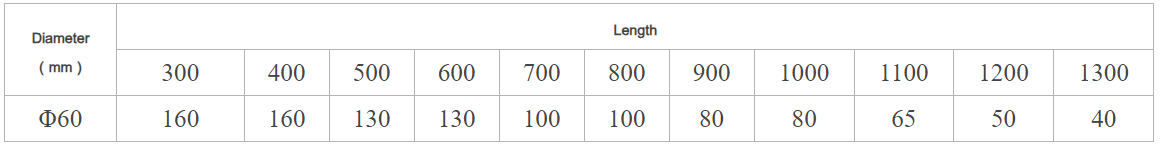

Static loading capacity (unit:kg)
