Light and middle duty application φ50 ( Main for Carton&Plastic Box Handing )

  1. Higer torque , able to handle up to 500kg goods per zone.
  2. Lower energy consumption, lower more than 10% by new technology.
  3. Wide speed , range up to 2-30m/min with Φ50.
  4. Easier control , 4 types of drive cards to meet the intelligent performance.

Description:

Dia: Φ50mm

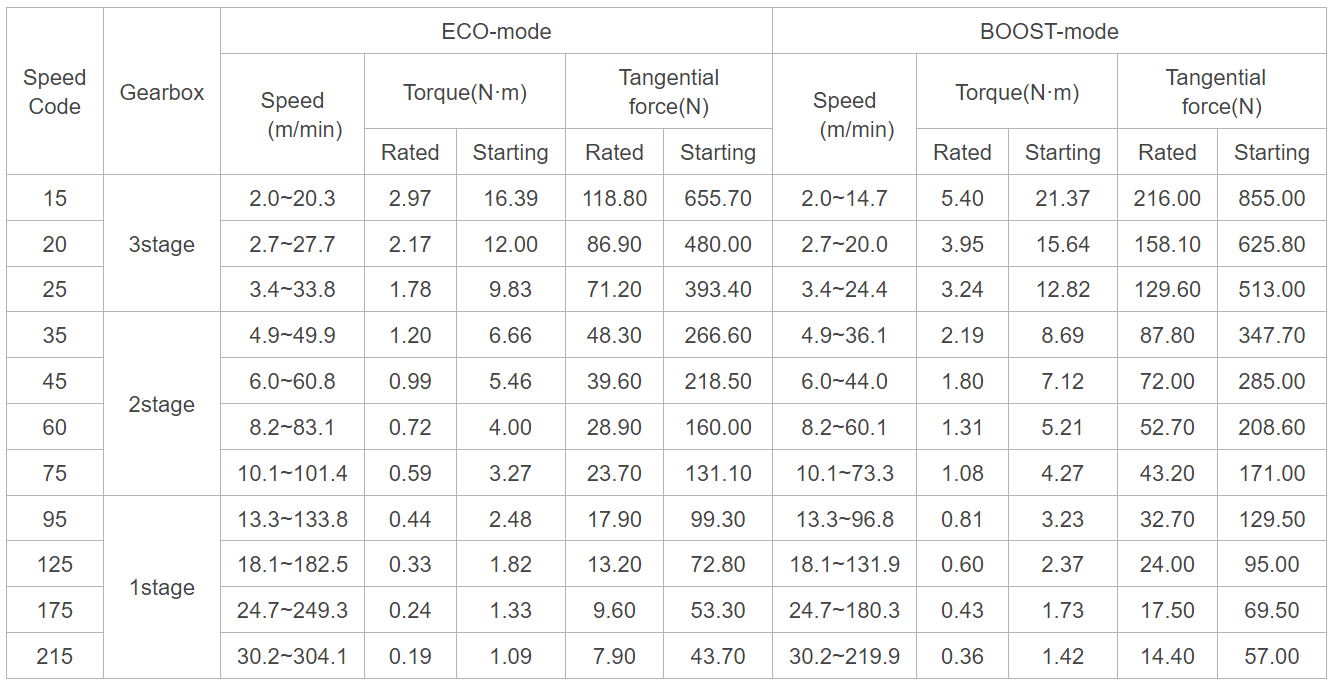

ECO mode, rated current 2.5A, starting current 3.0A.

Under BOOST mode, the rated current is 3.5A, and the starting current is 5.0A.
Please ensure that the cable end axis of MDR is conductive to the rack which is effectively grounded to ensure that static electricity can be effectually discharged.

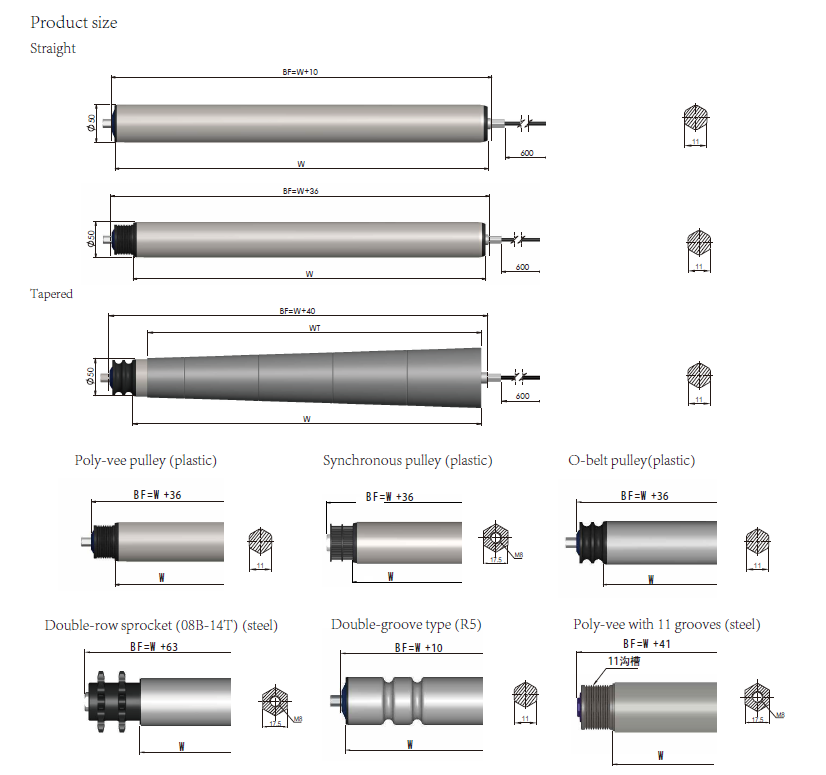

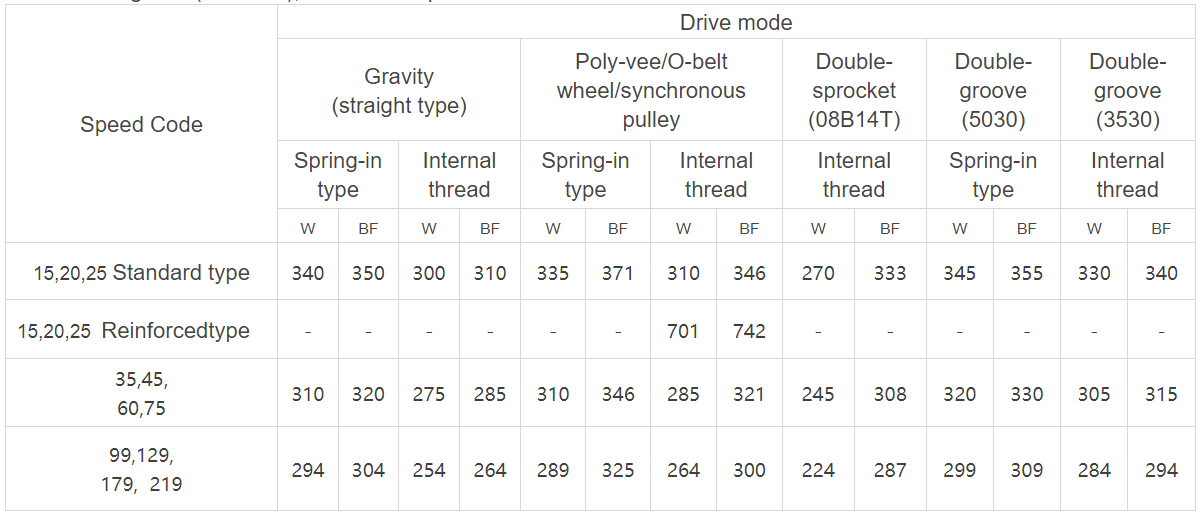

Minimum length W (unit: mm); diameter of φ50

Maximum pulley roller length: 1,000m (If the length is beyond 1,000mm, please contact us).
Synchronous pulley types support internal thread installation only.
